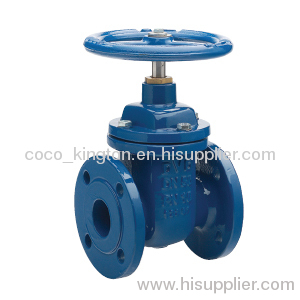

Non rising stem and resilient soft seated DI gate valve ANSI 125/150 SAFVAL manufacturer from China Qingdao Safval Valve Co.,Ltd

Non rising stem and resilient soft seated DI gate valve ANSI 125/150

Price:	5.0~1000.0 USD
Payment Terms:	L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SAFVAL

Production Capacity: China

Delivery Date: 30 days

Standard or Nonstandard: Standard

Structure: Gate

Temperature of Media: Medium Temperature

Brand Name: SAFVAL

Means of Transport: Ocean,Air

Packing: plywood case

Power: Manual

Pressure: Medium Pressure

Material: Casting

Media: Water

Ductile iron gate vlave
Non rising stem&Resilient seat
Size: DN50-300
Standard: ANSI 125/150
ISO 9001/CE certificates

Products: Non rising stem and resilient soft seated DI gate valve ANSI 125/150

Description:

1. Components/material:

1	Body	Ductile iron
2	Disc	Ductile iron with NBR/EPDM/FPM
3	Bonnet	Ductile iron
4	Stem	Stainless steel
5	O-ring	NBR
6	Gland	Ductile iron
7	Hand wheel	Ductile iron

2. Application:

1	Face to face is according to ANSI B16.10
2	Flanged drilled is according to ANSI B16.1/16.5
3	Class 125: Flat face flange
4	Class 150: Raised face flange

3. Dimensions:

DN	50	65	80	100	125	150	200	250	300
L	178	190	203	229	254	267	292	330	356
H	279	284	295	325	376	429	533	615	690
D	165	185	200	220	250	285	340	400	455
C	200	200	250	280	280	340	340	400	450

5. Pressure:

Working pressure	125PSI	150PSI
Shell pressure	350PSI	400PSI
Seat pressure	200PSI	250PSI

6. Design description:

Full port design

Non rising stem(choice of rising stem)

BB, bolted bonnet

Resilient soft seated(choice of metal seated)

Renewable seat rings

Flanged or buttwelding ends

Available with BG/Pneumatic/Hydraulic operation

About us

Qingdao SAFVAL Valve Co.,Ltd established in Qingdao China, has been designing, manufacturing and exporting with SAFVAL brand valves for valve industry in different applications ( water, steam, oil, chemical, gas, marine....)

SAFVAL supplies these various valves as per the customers' specification and in compliance with industry standards. Owing to high quality raw material, advanced casting and machining process and morden scientific testing facilities, we are instrumental in offering industrial valves with durability, high performance, corrosion resistance and dimensional accuracy.
